Lift Scale

Dynamic Lift Scale Systems for Legal Trade

With a legal for trade lift scale system from POUL TARP A/S you will get one of the most accurate and reliable lift scale systems available for waste collection.

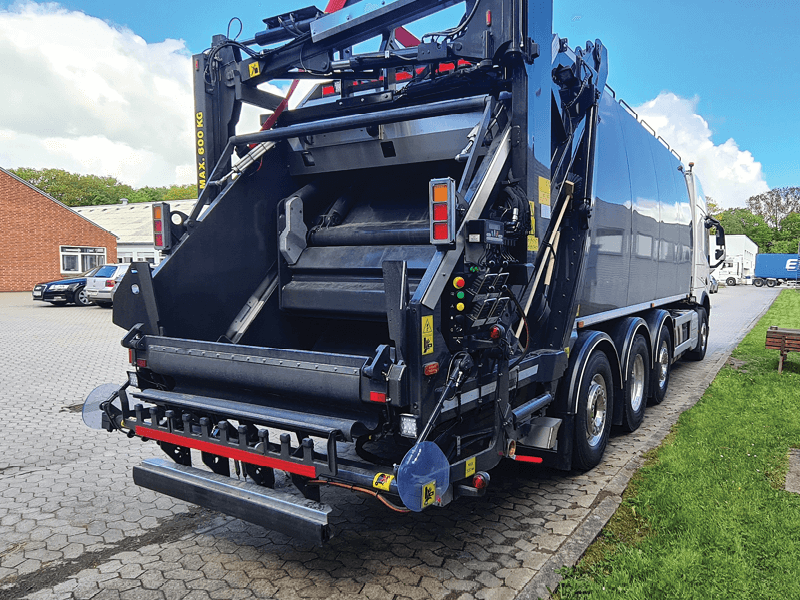

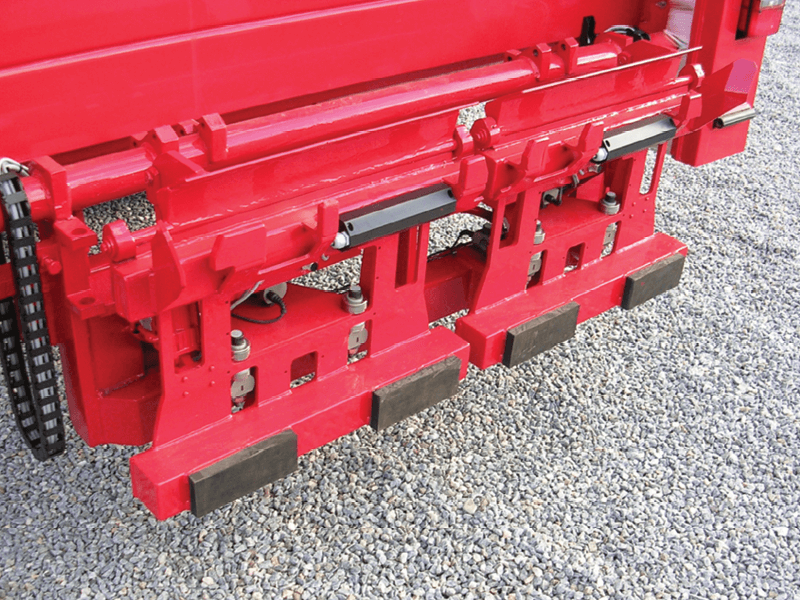

The lift scale is especially designed to be integrated in existing lifting systems on garbage trucks for weight registration of the individual waste bin/container. The lift scale systems are available in a variety of models allowing the systems to be integrated in both rear-, side, - and front loaders of all brands/manufactures.
The scale system can be integrate in all lift systems.



Dynamic Weighing

The weighing is dynamic meaning that the net-weight of the bin/container is registered while the lift is moving. No lift stop is required.

One of the advantages of using dynamic weighing is the fact that the time used for emptying a waste bin is reduced because the lift does not stop going up or down making it possible to empty more bins/containers on a daily basis.

The weighing instrument is placed next to the lift control making it easy for the staff to operate the functions especially designed for lift scale systems. The scale is prepared for data communicate with an RFID tag-reading systems and route planning system.



Approvals:

• Maximum capacity up to 5.000 kg
• Accuracy class Y(a) or Y(b)
• Accuracy from 0.2 kg on each weighing
• Compensates for up to 20% inclinations
• Temperature range: -25°C to +40°C
• Approved according to Directive 2014/32/EU
  - can be used for legal trade

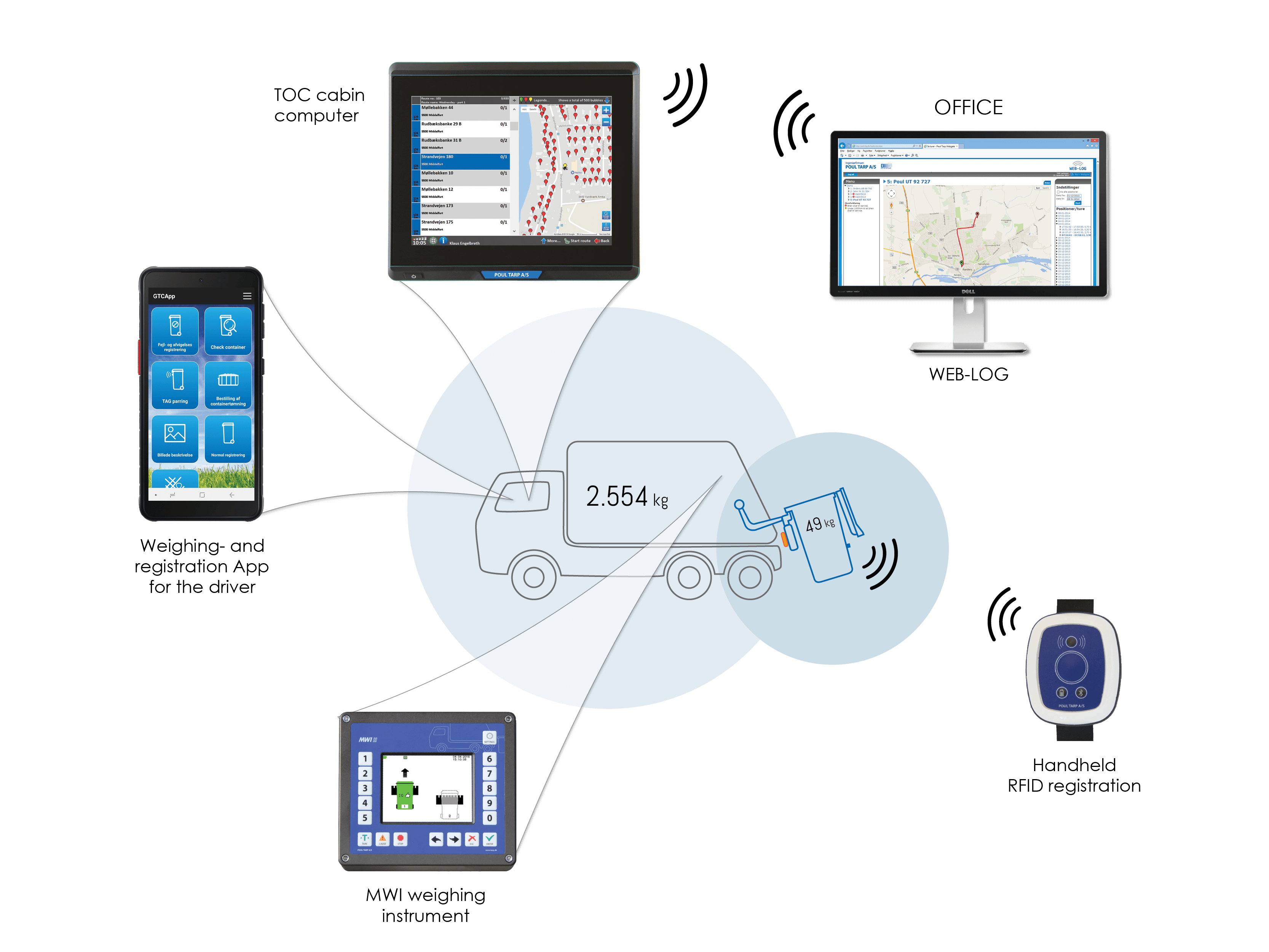

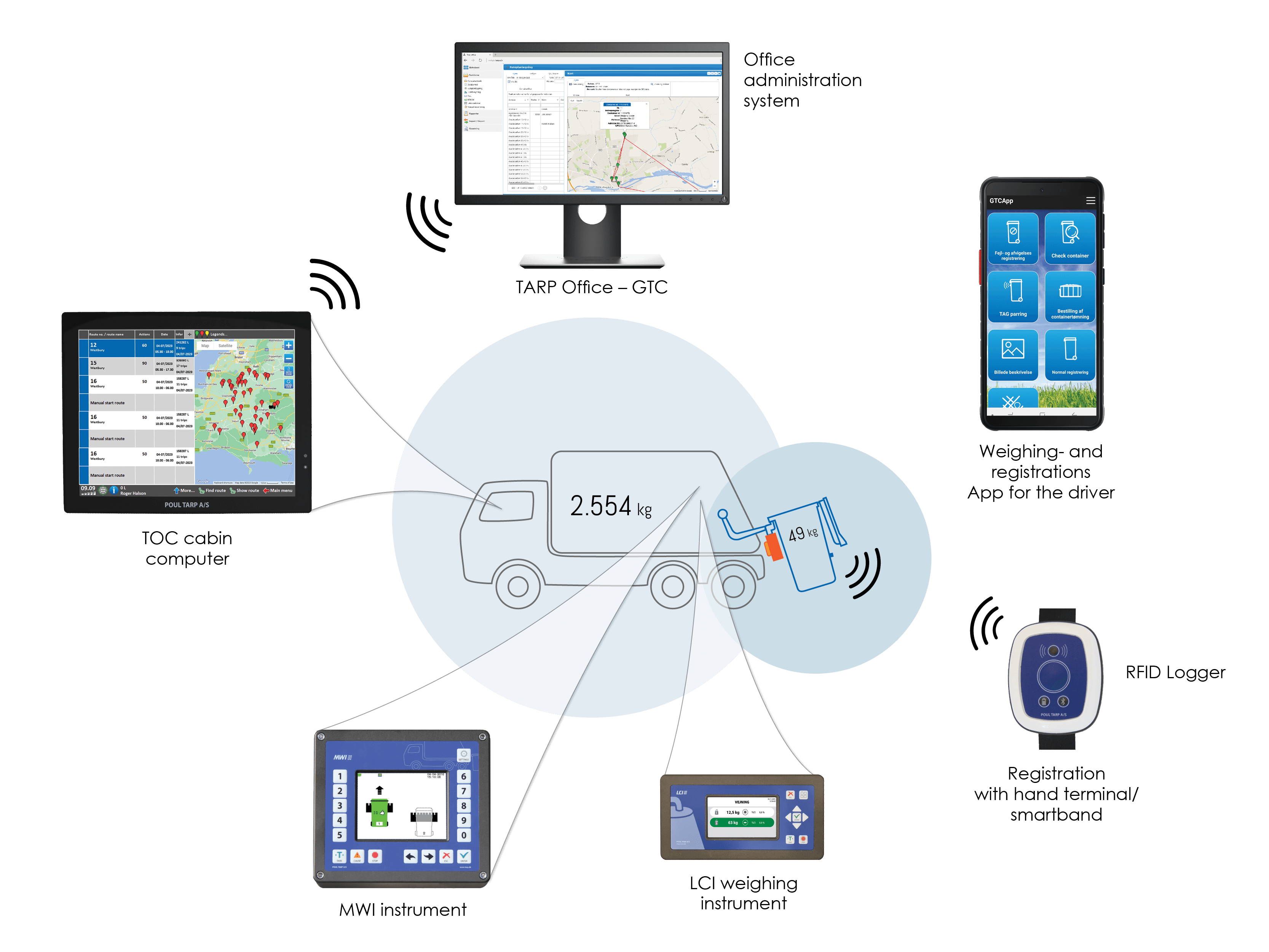

Connection possibilities:

• On-line GPRS Data collection and communication with the web-based administration platform TARP Office - GTC.
  Printer and TOC cabin computer for data registration and data transfer to the office
• Camera for automatic photo documentation of emptied containers
